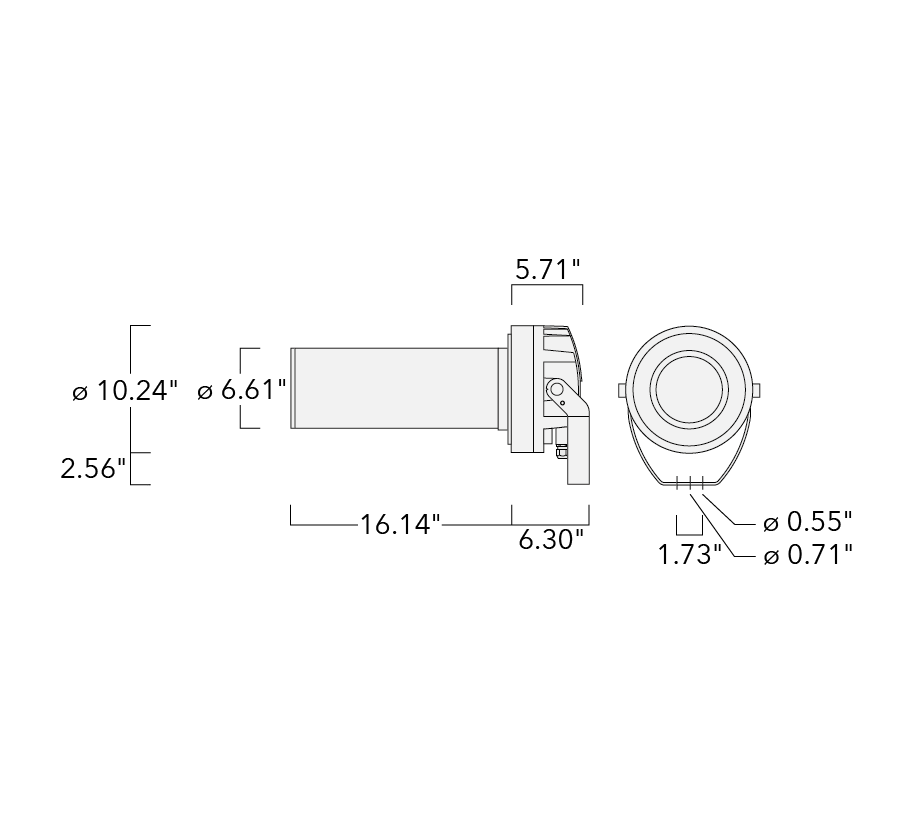

FLC230 LED GOBO PROJECTOR

Profile Projector [GP] for projection of gobos on a surface. Spherical/triple flat convex lens system. Gobo motif on request, to be ordered separately. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass main lens. One cable gland. Second gland for through wiring on request. Integral EC electronic converter, thermally separated. LED boards can be removed for upgrading. PMMA LED lenses.

Back
Standard Colours
Tunable White
Colour Changer
Family Spec Sheet
Adjustable rectangular light area Adjustable rectangular light area Frame Frame
Adjustable round spot area Adjustable round spot area Zoom Zoom
Freeform shape projection Freeform shape projection Gobo Gobo
6W18 – 26W24 – 37W236 – 52W

Profile Projector [GP] for projection of gobos on a surface.
Spherical/triple flat convex lens system. Aperture angle ranges from 16.2-18.4°. Gobo size B. Gobo outside diameter 86 mm, max printable area d = 60 mm. WE-EF recommends d = 48 mm. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass main lens. One cable gland, second gland for through wiring on request. PMMA LED lenses. Integral driver, thermally separated. LED boards can be removed for upgrading. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminum alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK07
SchutzartIP66
AbdeckungPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Korrosionsschutz5CE
Befestigung

Elektrik

LED TreiberIntegral EC electronic converter with 0-10V dimming, thermally separated
Kabel
Leistungsfaktor> 0.9
NetzIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
ÜberspannungsschutzIntegral 10kV Surge Protector

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 90000h
GOBOGobo outside diameter 86 mm, max. printable area d = 60 mm. WE-EF recommendation = d 48 mm.

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

CRI

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
139-2987_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-36W / 850 mA - 2200 K1980.370electronic gear10.80
139-2987_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-36W / 850 mA - 2200 K1814.370electronic gear10.80
139-2989_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-36W / 850 mA - 2700 K2321.180electronic gear10.80
139-2989_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-36W / 850 mA - 2700 K2126.680electronic gear10.80
139-2991_minsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-36W / 850 mA - 3000 K2341.880electronic gear10.80
139-2991_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-36W / 850 mA - 3000 K2145.580electronic gear10.80
139-2993_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-36W / 850 mA - 4000 K2509.980electronic gear10.80
139-2993_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-36W / 850 mA - 4000 K2299.580electronic gear10.80
139-2988_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-48W / 1100 mA - 2200 K2528.370electronic gear10.80
139-2988_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-48W / 1100 mA - 2200 K2316.470electronic gear10.80
139-2990_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-48W / 1100 mA - 2700 K2963.680electronic gear10.80
139-2990_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-48W / 1100 mA - 2700 K2715.180electronic gear10.80
139-2992_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-48W / 1100 mA - 3000 K2991.280electronic gear10.80
139-2992_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-48W / 1100 mA - 3000 K2740.580electronic gear10.80
139-2994_minsymmetric Gobo-Projector [GP] - min aperture angleLED-FT-48W / 1100 mA - 4000 K3205.380electronic gear10.80
139-2994_maxsymmetric Gobo-Projector [GP] - max aperture angleLED-FT-48W / 1100 mA - 4000 K2936.780electronic gear10.80
Showing 1 to 16 of 16 Entries
